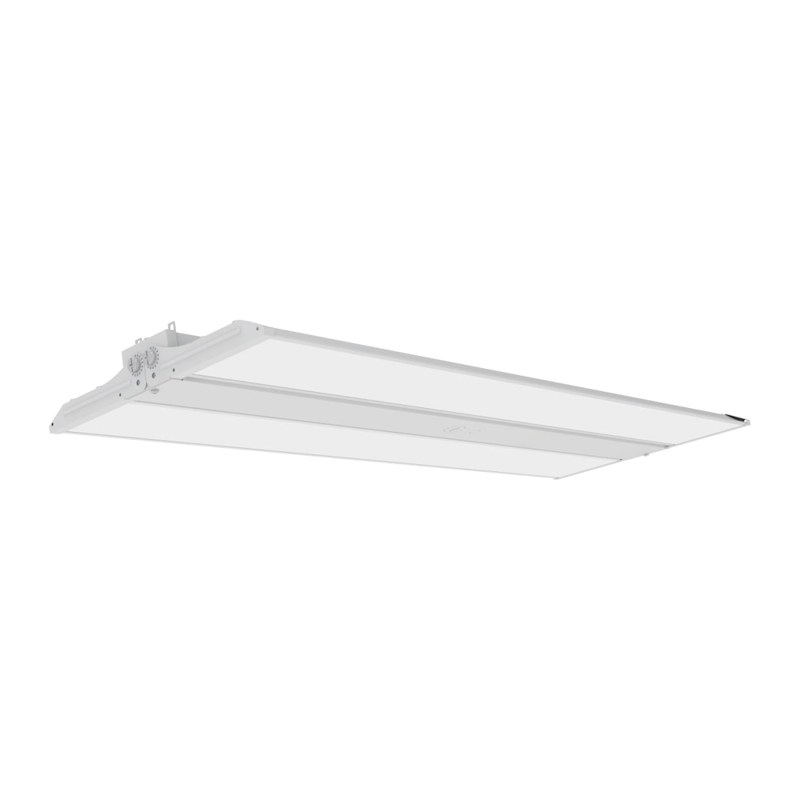

Tunable LED Linear High Bay

All-in-one linear high bay with tunable CCT and wattage up to 300W (150 lm/W) — ideal for warehouses and high-ceiling industrial spaces.

Specifications

Wattage Selectable: 165/130/110/80/60 W, 220/180/165/110/80 W, 300/225/165/110/80 W
Lumen output 24,750 / 33,000 / 45,000 lm (max)
Efficacy Up to 150 lm/W
Color temperature (CCT) 3500/4000/5000 K selectable
CRI Ra>70
Input voltage 120-277 V / 120-347 V / 277-480 V AC
Dimming 0-10V standard; 12V DC auxiliary dimming input
Power factor >0.9
Beam angle 90°
Lifetime >50,000 hours
Warranty 5 years limited
IP rating / location Damp location
Operating temperature -40°F to 113°F
Dimensions 165/220 W: 23.64 x 12.54 x 1.85 in (600.46 x 318.51 x 46.99 mm); 300 W: 35.12 x 12.54 x 1.85 in (892.04 x 318.51 x 46.99 mm)
Mounting Chain mount standard; foldable 0-90° (0/23/45/68/90°); pendant and surface mounting with brackets sold separately
Sensors and options Field-installable plug-and-play bi-level occupancy sensor; microwave or PIR sensor, emergency driver, wire guard and remote sold separately

Values from the manufacturer spec sheet. Models and options can change, so please confirm the exact model with us before you order or apply for a rebate.
